  4. Huawei SUN2000-5K-MAP0 Three-Phase Hybrid Solar Inverter 5 kW
  5. Inverters
Fox ESS DDSU666 - Single Phase Energy Meter
Fox ESS DDSU666 - Single Phase Energy Meter
108.09 €
108.09 €
Huawei · HW0083

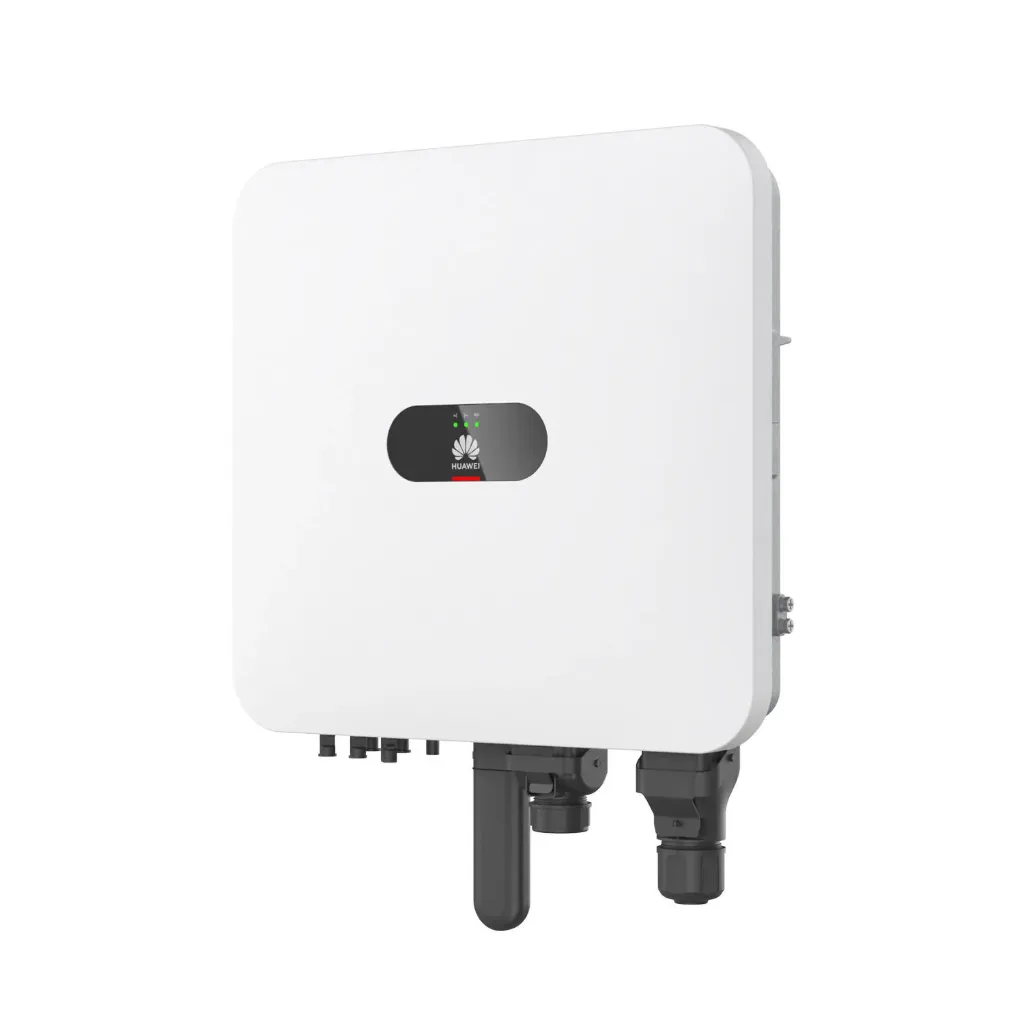

Huawei SUN2000-5K-MAP0 Three-Phase Hybrid Solar Inverter 5 kW

1,291.18 € 1,291.18 €
1,067.09 € excl. VAT / Units

See your installer price
Net prices, pallet tiers and a 30-day account — approval within 1 business day.
Sign in / Request access
Reply within 1 business day
  • Brand - Huawei
  • Inverter Type
  • Phases
  • Rated AC Power (kW)
  • Protection Rating (IP)
  • MPPT
  • Strings por MPPT
  • European Efficiency (%)
  • Max. Input Voltage (V)
  • Safety
  • Rated Output Voltage
  • Operating Temperature
  • Maximum Efficiency (%)
  • Backup Function
  • Battery Compatible
  • Length (mm)
  • Depth (mm)
  • Width (mm)
  • Weight (kg)
  • Warranty (years)
  • Model
  • Max. Output Current
Estimated delivery: 72h
In stock available
Real time stock

Pick up at warehouse

Description

The Huawei SUN2000-5K-MAP0 is a robust 5 kW three-phase hybrid inverter designed for demanding solar installations. It delivers a maximum efficiency of 98.4% and includes SmartGuard technology for seamless backup power.

  • 2 MPPTs for optimized solar energy harvesting across different roof orientations.
  • SmartGuard backup-ready functionality ensures power continuity during grid outages.
  • Integrated AFCI provides advanced electrical safety and fault detection.
  • IP66 rating guarantees reliable operation in harsh outdoor environments.
Brand Huawei
Inverter Type Hybrid
Phases Three-phase
Rated AC Power (kW) 5
Protection Rating (IP) IP65
MPPT 2
Strings por MPPT 1
European Efficiency (%) 97,5
Max. Input Voltage (V) 1.100
Safety AFCI e RSD (com otimizador)
Rated Output Voltage 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC, 3W/N + PE
Operating Temperature -25 °C … +60 °C
Maximum Efficiency (%) 98,4
Backup Function Sim, através do SmartGuard-63A-T0
Battery Compatible LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1
Length (mm) 490.0
Depth (mm) 130.0
Width (mm) 460.0
Weight (kg) 43
Warranty (years) 5
Model SUN2000-5K-MAP0
Max. Output Current 8,3 A
Brand: Huawei
Inverter Type: Hybrid
Phases: Three-phase
Rated AC Power (kW): 5
Protection Rating (IP): IP65
MPPT: 2
Strings por MPPT: 1
European Efficiency (%): 97,5
Max. Input Voltage (V): 1.100
Safety: AFCI e RSD (com otimizador)
Rated Output Voltage: 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC, 3W/N + PE
Operating Temperature: -25 °C … +60 °C
Maximum Efficiency (%): 98,4
Backup Function: Sim, através do SmartGuard-63A-T0
Battery Compatible: LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1
Length (mm): 490.0
Depth (mm): 130.0
Width (mm): 460.0
Weight (kg): 43
Warranty (years): 5
Model: SUN2000-5K-MAP0
Max. Output Current: 8,3 A

The Huawei SUN2000-5K-MAP0 is a robust 5 kW three-phase hybrid inverter designed for demanding solar installations. It delivers a maximum efficiency of 98.4% and includes SmartGuard technology for seamless backup power.

  • 2 MPPTs for optimized solar energy harvesting across different roof orientations.
  • SmartGuard backup-ready functionality ensures power continuity during grid outages.
  • Integrated AFCI provides advanced electrical safety and fault detection.
  • IP66 rating guarantees reliable operation in harsh outdoor environments.
Datasheet - SUN2000-5-12K-MAP0.pdf
