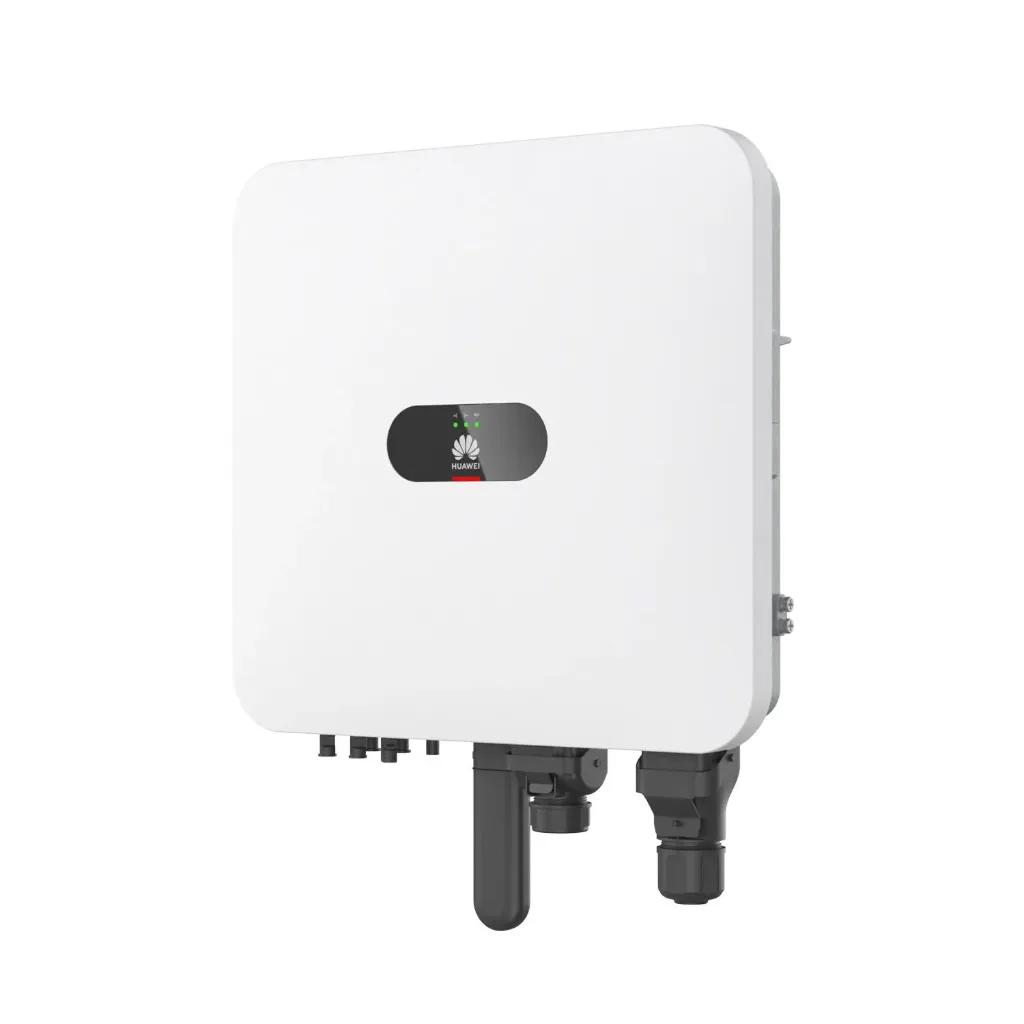

Huawei SUN2000-10K-MAP0 Three-Phase Hybrid Solar Inverter 10 kW

1,366.09 €incl. VAT 1,366.09 €
1,129.00 € excl. VAT / Units

See your installer price
Net prices, pallet tiers and a 30-day account — approval within 1 business day.
Sign in / Request access
Reply within 1 business day
  • Brand - Huawei
  • Inverter Type
  • Phases
  • Rated AC Power (kW)
  • Protection Rating (IP)
  • MPPT
  • Strings per MPPT
  • European Efficiency (%)
  • Max. Input Voltage (V)
  • Safety
  • Rated Output Voltage
  • Operating Temperature
  • Maximum Efficiency (%)
  • Backup Function
  • Compatibility
  • Length (mm)
  • Depth (mm)
  • Width (mm)
  • Weight (kg)
  • Warranty (years)
  • Model
  • Communication Interfaces
  • Max. Output Current
Estimated delivery: 72 hours
Products in stock
Real-time stock

Sales support

Description

The Huawei SUN2000-10K-MAP0 is a three-phase hybrid solar inverter rated at 10 kW, designed for installers seeking high efficiency and robust protection in a single unit. With 2 MPPTs and 98.6% maximum efficiency, it delivers strong energy yield across varied roof layouts and shading conditions. SmartGuard compatibility and integrated AFCI add an extra layer of safety and backup flexibility for demanding B2B projects.

  • 10 kW three-phase hybrid inverter with 2 MPPT for flexible string design
  • 98.6% maximum efficiency for optimized energy harvest
  • Integrated AFCI for enhanced DC-side arc fault protection
  • SmartGuard compatible, enabling backup power functionality
  • IP66 enclosure rating for outdoor installation in harsh environments
Brand Huawei
Inverter Type Hybrid
Phases Three-phase
Rated AC Power (kW) 5.0
Protection Rating (IP) IP65
MPPT 2
Strings per MPPT 1
European Efficiency (%) 97.5
Max. Input Voltage (V) 1100
Safety AFCI e RSD (com otimizador)
Rated Output Voltage 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC, 3W/N + PE
Operating Temperature -25~60
Maximum Efficiency (%) 98.4
Backup Function Sim, através do SmartGuard-63A-T0
Length (mm) 490.0
Depth (mm) 130.0
Width (mm) 460.0
Weight (kg) 45
Warranty (years) 10
Model SUN2000-5/6/8/10/12K-MAP0
Compatibility LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1
Communication Interfaces RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional); 4G/3G/2G via Smart Dongle-4G (Optional); EMMA (Optional)
Max. Output Current 16,7 A
Brand: Huawei
Inverter Type: Hybrid
Phases: Three-phase
Rated AC Power (kW): 5.0
Protection Rating (IP): IP65
MPPT: 2
Strings per MPPT: 1
European Efficiency (%): 97.5
Max. Input Voltage (V): 1100
Safety: AFCI e RSD (com otimizador)
Rated Output Voltage: 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC, 3W/N + PE
Operating Temperature: -25~60
Maximum Efficiency (%): 98.4
Backup Function: Sim, através do SmartGuard-63A-T0
Compatibility: LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1
Length (mm): 490.0
Depth (mm): 130.0
Width (mm): 460.0
Weight (kg): 45
Warranty (years): 10
Model: SUN2000-5/6/8/10/12K-MAP0
Communication Interfaces: RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional); 4G/3G/2G via Smart Dongle-4G (Optional); EMMA (Optional)
Max. Output Current: 16,7 A

The Huawei SUN2000-10K-MAP0 is a three-phase hybrid solar inverter rated at 10 kW, designed for installers seeking high efficiency and robust protection in a single unit. With 2 MPPTs and 98.6% maximum efficiency, it delivers strong energy yield across varied roof layouts and shading conditions. SmartGuard compatibility and integrated AFCI add an extra layer of safety and backup flexibility for demanding B2B projects.

  • 10 kW three-phase hybrid inverter with 2 MPPT for flexible string design
  • 98.6% maximum efficiency for optimized energy harvest
  • Integrated AFCI for enhanced DC-side arc fault protection
  • SmartGuard compatible, enabling backup power functionality
  • IP66 enclosure rating for outdoor installation in harsh environments
