  4. Huawei SUN2000-8K-MAP0 Three-Phase Hybrid Solar Inverter 8 kW
  5. Inverters
Dyness Powerbox G2 10.24kWh Solar Battery
Dyness Powerbox G2 10.24kWh Solar Battery
1,968.84 €
1,968.84 €
Deye 16kW Single-Phase Hybrid Inverter SUN-16K-SG01LP1-EU
Deye 16kW Single-Phase Hybrid Inverter SUN-16K-SG01LP1-EU
2,357.95 €
2,357.95 €
Huawei · HW0107

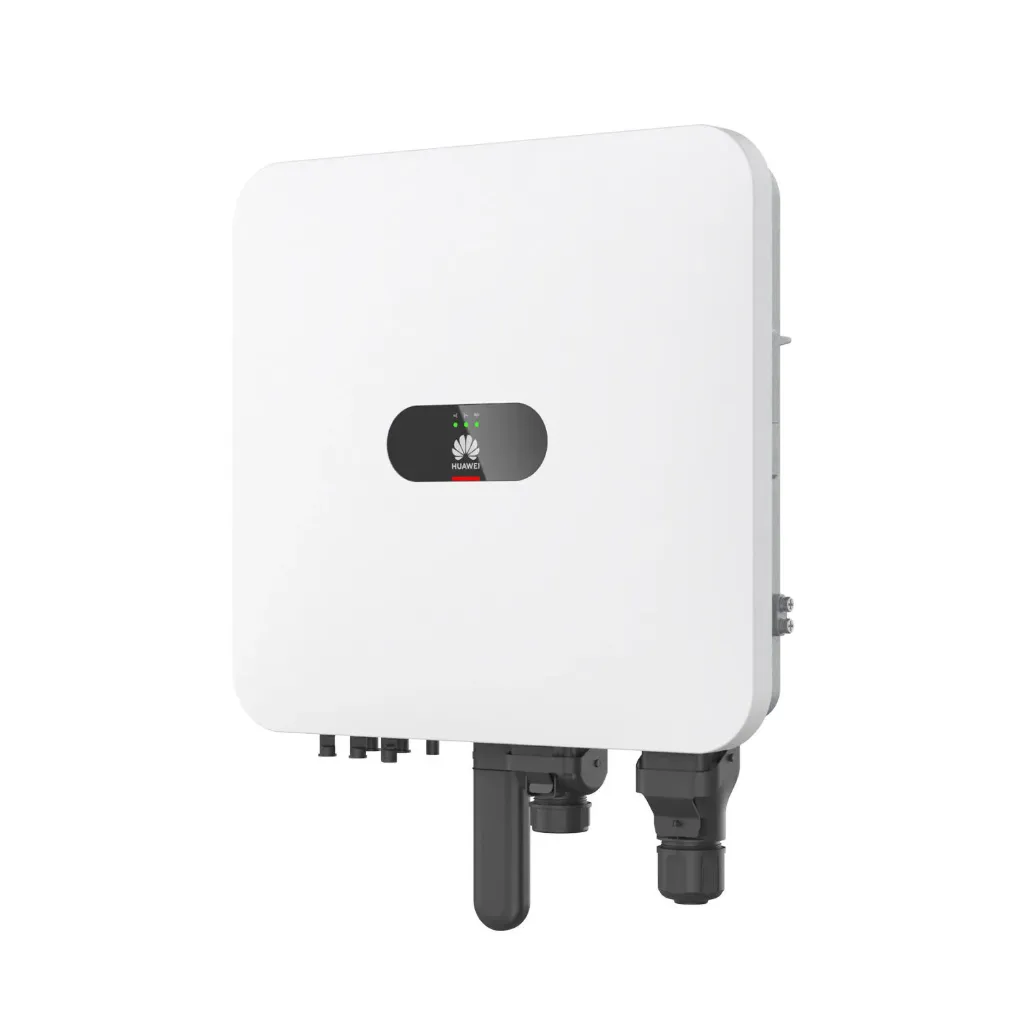

Huawei SUN2000-8K-MAP0 Three-Phase Hybrid Solar Inverter 8 kW

1,712.38 € 1,712.38 €
1,415.19 € excl. VAT / Units

See your installer price
Net prices, pallet tiers and a 30-day account — approval within 1 business day.
Sign in / Request access
Reply within 1 business day
  • Brand - Huawei
  • Inverter Type
  • Phases
  • Rated AC Power (kW)
  • Protection Rating (IP)
  • MPPT
  • Strings por MPPT
  • European Efficiency (%)
  • Max. Input Voltage (V)
  • Safety
  • Rated Output Voltage
  • Operating Temperature
  • Maximum Efficiency (%)
  • Backup Function
  • Battery Compatible
  • Length (mm)
  • Depth (mm)
  • Width (mm)
  • Weight (kg)
  • Warranty (years)
  • Model
  • Max. Output Current
Estimated delivery: 72h
In stock available
Real time stock

Pick up at warehouse

Description

The Huawei SUN2000-8K-MAP0 is a robust three-phase hybrid solar inverter designed for 8 kW PV systems. With a maximum efficiency of 98.6% and dual MPPTs, it ensures optimal energy harvest. It also includes SmartGuard for backup readiness and integrated AFCI for enhanced safety.

  • 8 kW three-phase hybrid power output for demanding installations.
  • 2 MPPTs to maximize energy yield across different array configurations.
  • 98.6% maximum efficiency for high-performance energy conversion.
  • SmartGuard technology makes the system backup-ready for power outages.
  • Integrated AFCI and IP66 rating ensure reliable, protected operation.
Brand Huawei
Inverter Type Hybrid
Phases Three-phase
Rated AC Power (kW) 8
Protection Rating (IP) IP65
MPPT 2
Strings por MPPT 1
European Efficiency (%) 98,0
Max. Input Voltage (V) 1.100
Safety AFCI e RSD (com otimizador)
Rated Output Voltage 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC, 3W/N + PE
Operating Temperature -25 °C … +60 °C
Maximum Efficiency (%) 98,6
Backup Function Sim, através do SmartGuard-63A-T0
Battery Compatible LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1
Length (mm) 490.0
Depth (mm) 130.0
Width (mm) 460.0
Weight (kg) 35
Warranty (years) 10
Model SUN2000-8K-MAP0
Max. Output Current 13,3 A
Brand: Huawei
Inverter Type: Hybrid
Phases: Three-phase
Rated AC Power (kW): 8
Protection Rating (IP): IP65
MPPT: 2
Strings por MPPT: 1
European Efficiency (%): 98,0
Max. Input Voltage (V): 1.100
Safety: AFCI e RSD (com otimizador)
Rated Output Voltage: 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC, 3W/N + PE
Operating Temperature: -25 °C … +60 °C
Maximum Efficiency (%): 98,6
Backup Function: Sim, através do SmartGuard-63A-T0
Battery Compatible: LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1
Length (mm): 490.0
Depth (mm): 130.0
Width (mm): 460.0
Weight (kg): 35
Warranty (years): 10
Model: SUN2000-8K-MAP0
Max. Output Current: 13,3 A

The Huawei SUN2000-8K-MAP0 is a robust three-phase hybrid solar inverter designed for 8 kW PV systems. With a maximum efficiency of 98.6% and dual MPPTs, it ensures optimal energy harvest. It also includes SmartGuard for backup readiness and integrated AFCI for enhanced safety.

  • 8 kW three-phase hybrid power output for demanding installations.
  • 2 MPPTs to maximize energy yield across different array configurations.
  • 98.6% maximum efficiency for high-performance energy conversion.
  • SmartGuard technology makes the system backup-ready for power outages.
  • Integrated AFCI and IP66 rating ensure reliable, protected operation.
Datasheet - SUN2000-5-12K-MAP0.pdf
